JL677A - Aruba 6100 24G CL4 4SFP+ Switch - IT YudaJL677A

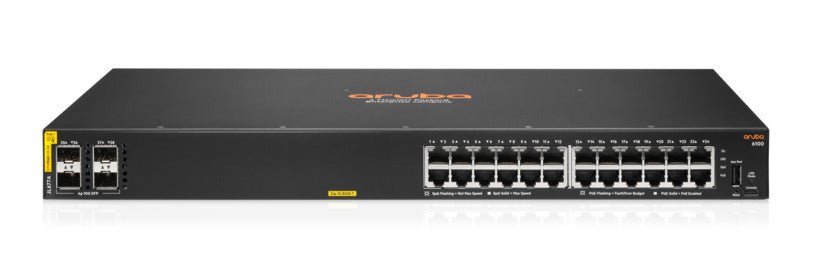

JL677A - Aruba 6100 24G CL4 4SFP+ Switch

by Aruba
$2,195.00 CAD - $2,195.00 CAD
$2,195.00 CAD
$2,195.00 CAD - $2,195.00 CAD
$2,195.00 CAD
SKU JL677A
Condition: New
Availability:
in stock, ready to be shipped

Our Customers Love Us

★★★★★

"Great customer service, and pricing."

Read Reviews
IT Yuda - Google Reviews IT Yuda - BBB

The Aruba CX 6100 switch series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switch provides a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This switch series has convenient built-in high-speed uplinks to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet work spaces.

Main Specifications
Product Description HPE Aruba 6100 24G Class4 PoE 4SFP+ - switch - 28 ports - managed - rack-mountable
Device Type Switch - 28 ports - managed - stackable
Enclosure Type Side to side airflow rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs
Capacity Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256
MAC Address Table Size 8192 entries
Routing Protocol IGMPv2, IGMPv3
Features Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Power AC 100-127/200-240 V (50/60 Hz)
Dimensions (WxDxH) 17.4 in x 10.6 in x 1.7 in
Weight 9.24 lbs
Localization English / United States
Extended Specifications
General
Device Type Switch - 28 ports - managed - stackable
Enclosure Type Side to side airflow rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs
Capacity Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256
MAC Address Table Size 8192 entries
Routing Protocol IGMPv2, IGMPv3
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Processor 1 x ARM A9: 1.016 GHz
RAM 4 GB DDR3 SDRAM
Flash Memory 16 GB
Expansion / Connectivity
Interfaces 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A
Power
Power Device Internal power supply
Power Provided 500 Watt 2.3 A
Voltage Required AC 100-127/200-240 V (50/60 Hz)
Power Consumption Operational 22.9 Watt
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792
Localization English / United States
Dimensions & Weight
Width 17.4 in
Depth 10.6 in
Height 1.7 in
Weight 9.24 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 15 - 95% (non-condensing)
Humidity Range Storage 15 - 90% (non-condensing)

Lifetime Limited Warranty
